Access BDD Flow X Curved Indoor Stairlift
Advanced swivel and levelling technology engineered for narrow and complex staircases
Engineered with proprietary Advanced Swivel and Levelling (ASL) technology, the Access BDD Flow X navigates intricate curves and staircases as narrow as 24 inches (610 mm). Fitted neatly to the treads rather than the wall, its single-rail system delivers exceptional ride comfort, continuous rotation in motion, and thoughtful safety innovations.
Access BDD Flow X Curved Indoor Stairlift
Supplied, installed, and serviced across Greater Vancouver by Home2stay
Key features built into every Flow X
Engineered for daily reliability, comfort, and safety. Every Access BDD stairlift installed by Home2stay arrives fully equipped with standard features designed for everyday peace of mind.
ASL Continuous Swivel & Levelling
Unique Advanced Swivel and Levelling rotates the seat smoothly while travelling along the rail, maintaining a level seat and clearing staircases as narrow as 610 mm (24 inches).

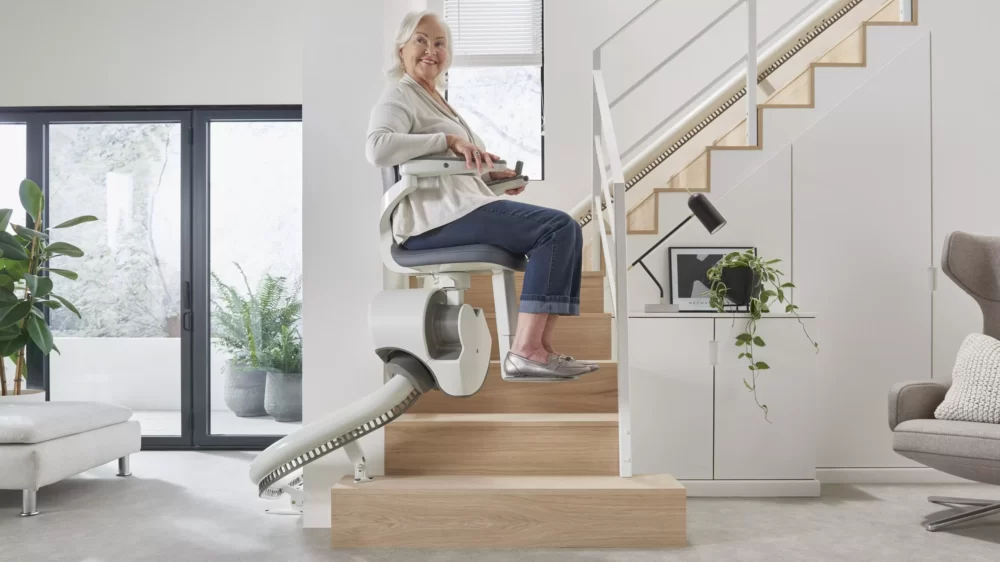

Discreet Single-Rail System
Mounted close to the steps on either side of your stairway, the low-profile single tube preserves maximum open staircase width for other household members.

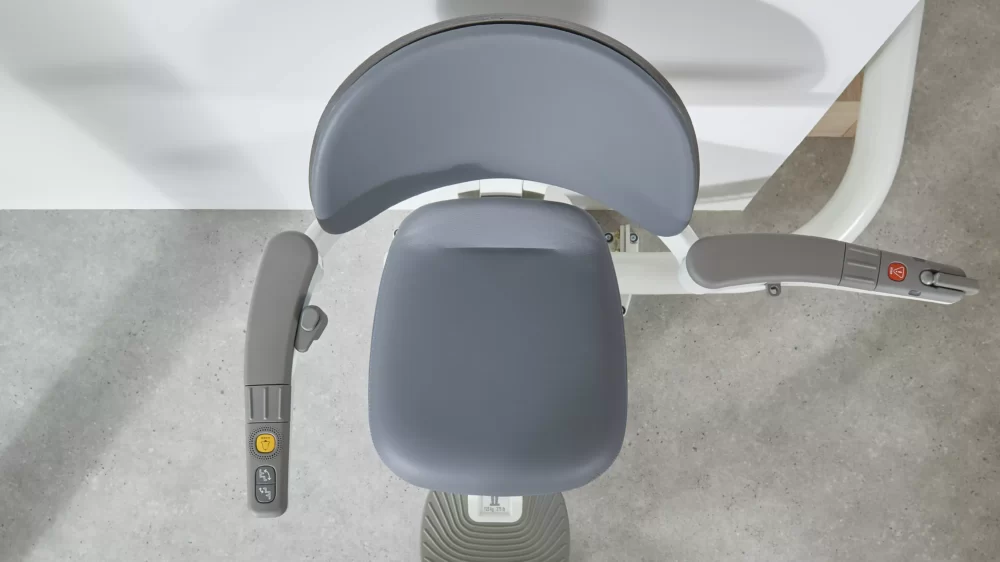

Wrap-Around Ergonomic Armrests
Tapered armrests give firm, ergonomic support when sitting down or rising up, featuring an open-access position that simplifies wheelchair and seated transfers.

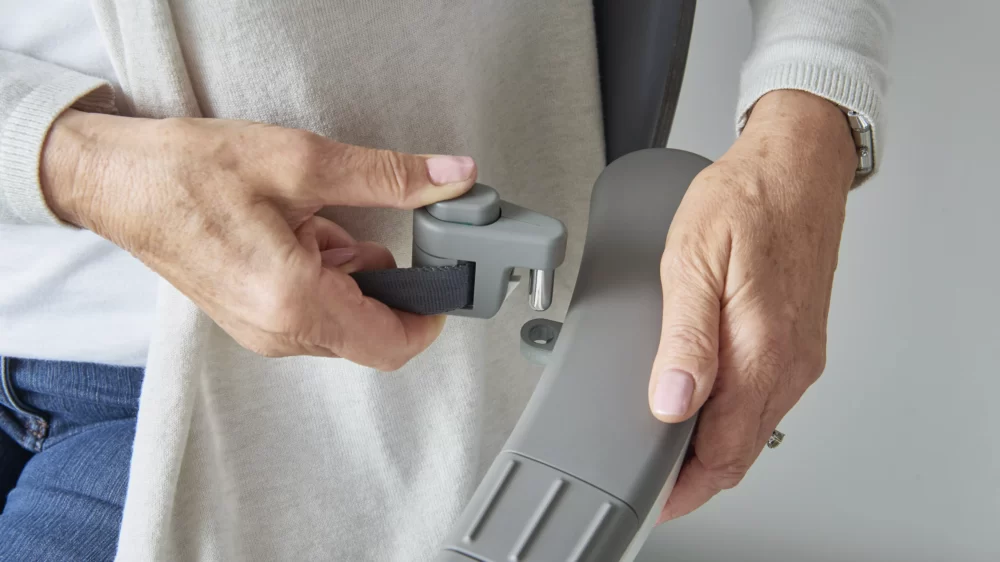

One-Handed Seatbelt with Detection
Fastens securely using only one hand and incorporates an intelligent buckle sensor that prevents travel until you are safely buckled in.

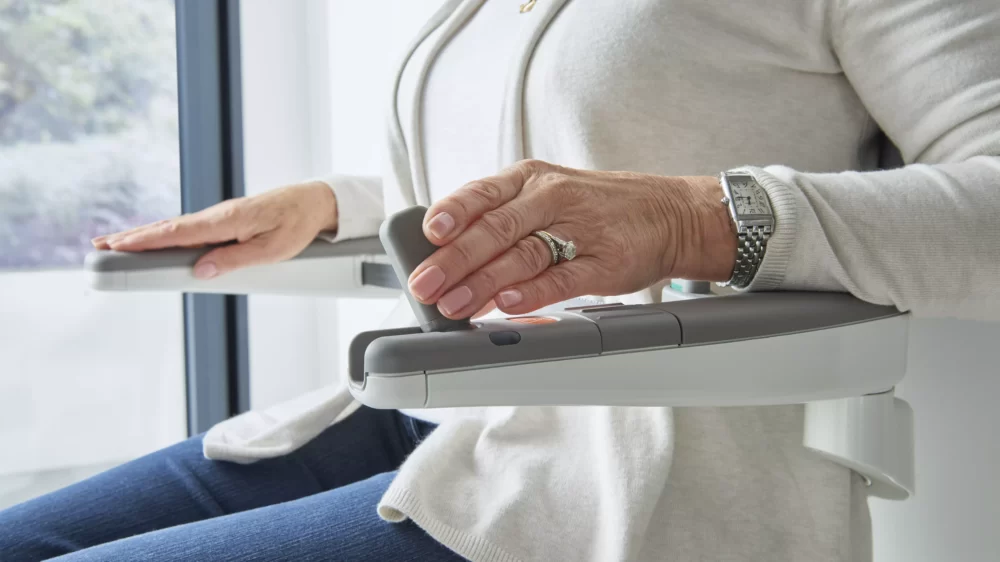

Integrated Soft-Grip Folding Joystick
Intuitive armrest toggle responds to gentle hand guidance and folds flat into the armrest when docked to keep hallways unobstructed.
Available options for your Flow X
Tailor your stairlift to suit your staircase layout, decor preferences, and personal mobility needs. Our assessment specialists help you choose the upgrades that make sense for your home.

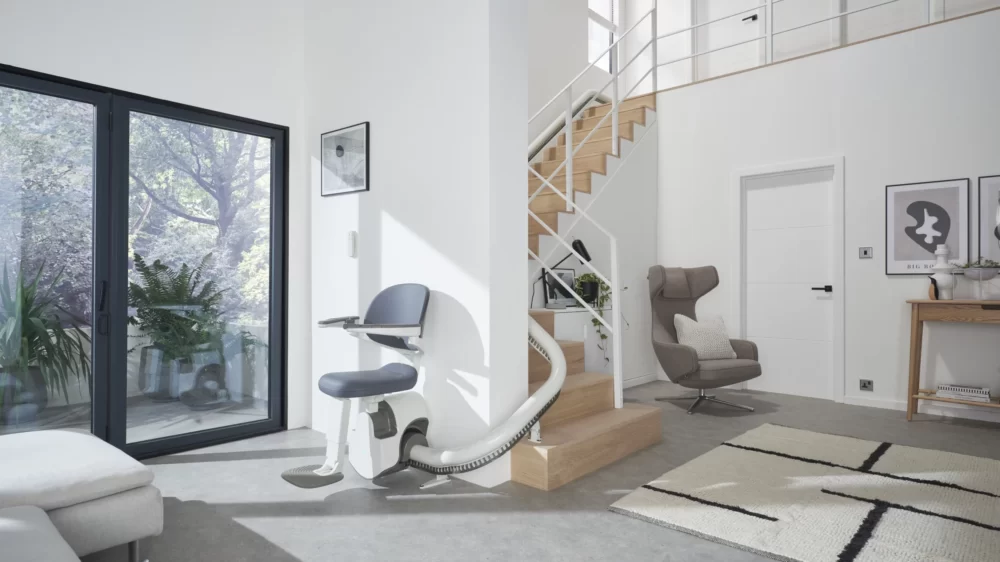

Footrest Sizing & Position Adjustment
Choice of 2 footrest platform sizes, customizable to 5 height and angle positions to ensure natural ergonomic posture.
Four-Position Seat Height Adjustment
Seat height can be set across 4 distinct positions from 515 mm to 585 mm (20.3 in to 23 in) measured from the floor to the top of the cushion.
Technical specifications & best-fit guide
Review detailed specifications as published by Access BDD and see whether this stairlift configuration matches your staircase and living requirements.
Model Specifications
- Lift Capacity
- 276 lb (125 kg)
- Minimum Staircase Width
- 610 mm (24 in)
- Maximum Staircase Incline
- Up to 72°
- Drive Type
- Rack and pinion
- Nominal Speed
- 0.1 m/s (20 ft/min)
- Motor Power
- 350 W
- Power Supply
- 2 x 12V batteries (24V system)
- Seat Height Range
- 515 – 585 mm (20.3 – 23 in), 4 positions
- Footrest Platform
- 2 sizes available, 5 position settings
- Safety Stop
- Automatic stop obstruction detection
- Safety Standards
- Machinery Directive 2006/42/EC, EN 81-40:2020
- Model Code
- RP01-CU
Best suited for
Our assessment team recommends Access BDD Flow X Curved Indoor Stairlift when your home and mobility needs align with these conditions:
- Narrow or steep staircases down to 24 inches (610 mm) wide
- Staircases with intermediate landings, turns, or spiral designs
- Riders needing single-handed seatbelt security and open armrest transfers
- Homes requiring a discreet single rail that leaves stairway walking space free
Warranty & maintenance
Every stairlift installed by Home2stay comes with local service support and warranty coverage designed to keep you moving safely and confidently.
Lifetime Limited Warranty
Access BDD and Home2stay stand behind every Access BDD stairlift with a lifetime limited warranty. It covers everything except the rollers and batteries. Rollers and batteries are covered separately by a 5-year warranty. To keep your lifetime coverage in place, the equipment needs an annual maintenance visit, and we're happy to help you schedule it.
One-Year Labour Warranty
Every stairlift installed by Home2stay includes a one-year labour warranty. Your coverage begins on the day of installation.
